BS Standard

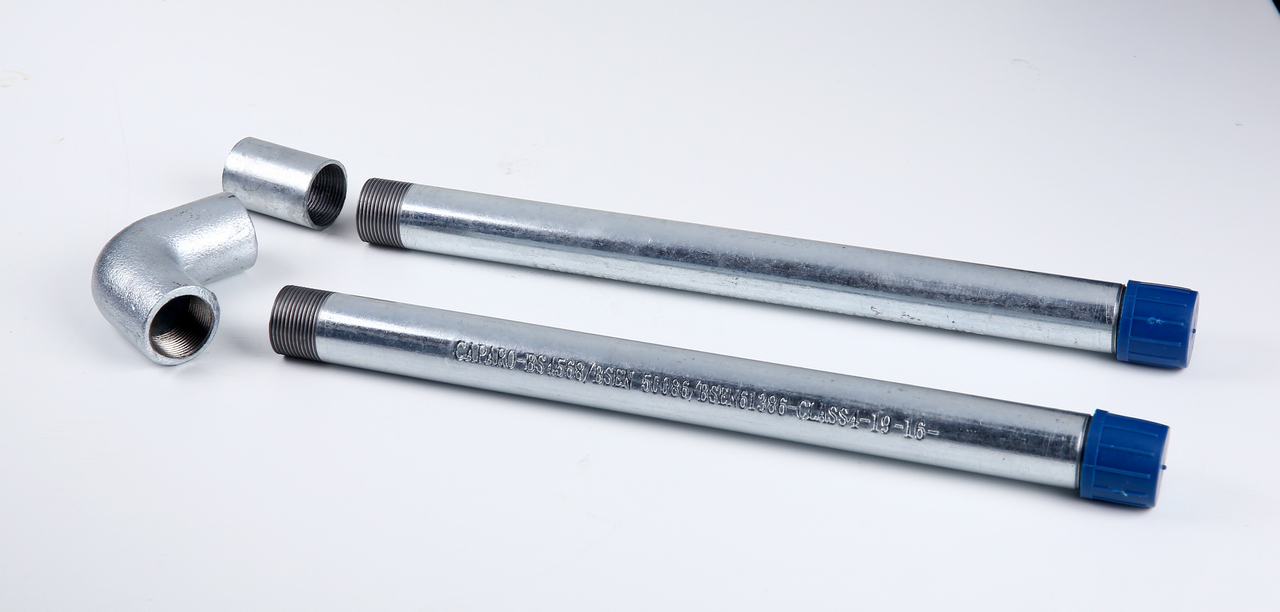

GI Rigid Conduits

CAPARO manufactures and supply Class 4 and Class 3 conduit steel to following standards: –
British standards BS 4568 part 1, BS EN 50086-1:1994, BS EN 61386 and BS31
Standard lengths 3.75m
Standard diameters 20mm, 25mm, 32mm, 1½” and 2”
Finish Class 4 – Hot dipped galvanised (inside and outside) screwed both ends and complete with one solid coupling and plastic cap on another end.
Finish Class 3 – Made from Hot dipped galvanised sheet, screwed both ends and complete with one solid coupling and plastic cap on another end.
Data sheet

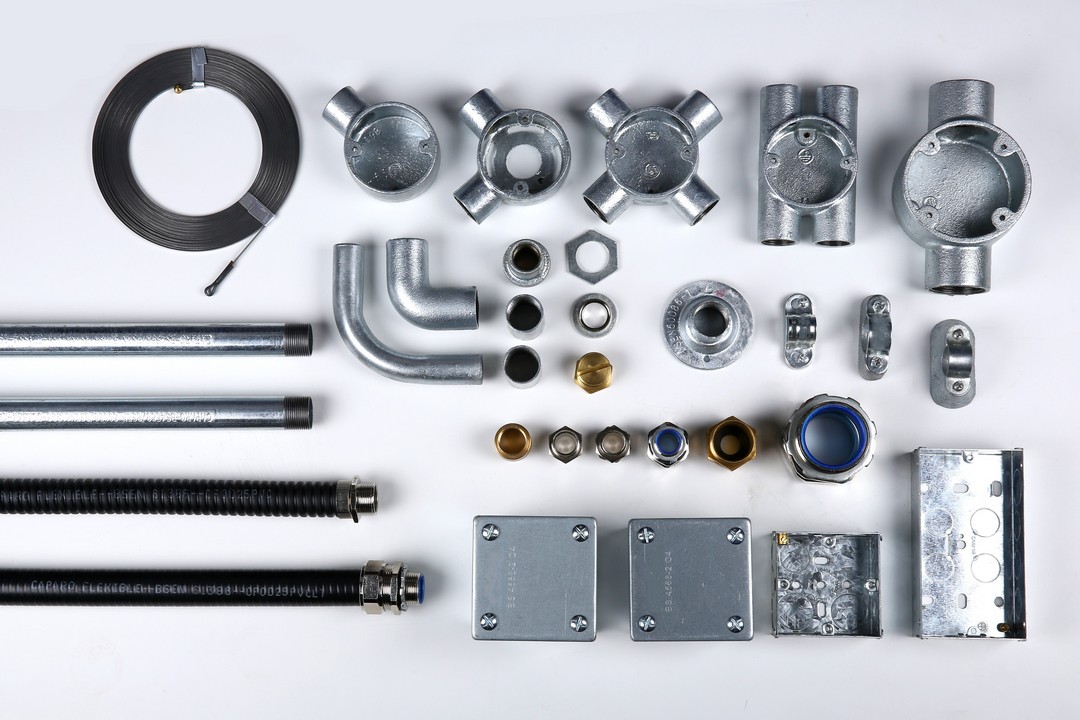

Conduit Fittings

Malleable Junction boxes and fittings:- A full range of Conduit Circular Boxes manufactured from malleable iron and hot dipped galvanized. Available in various sizes. M4 tapped hole in the base for an earthing screw.
Data sheet

Steel Fittings:- Wide range of steel fittings includes saddles, couplers, reducers, locknuts, steel covers etc.,
Data sheet

Brass fittings: Brass fittings are designed to protect cables from sharp edges when entering trucking or equipment. Standard bushes are supplied with hexagon body. Manufactured from high quality brass BS 2874 CZ121 Pb3.
Data sheet

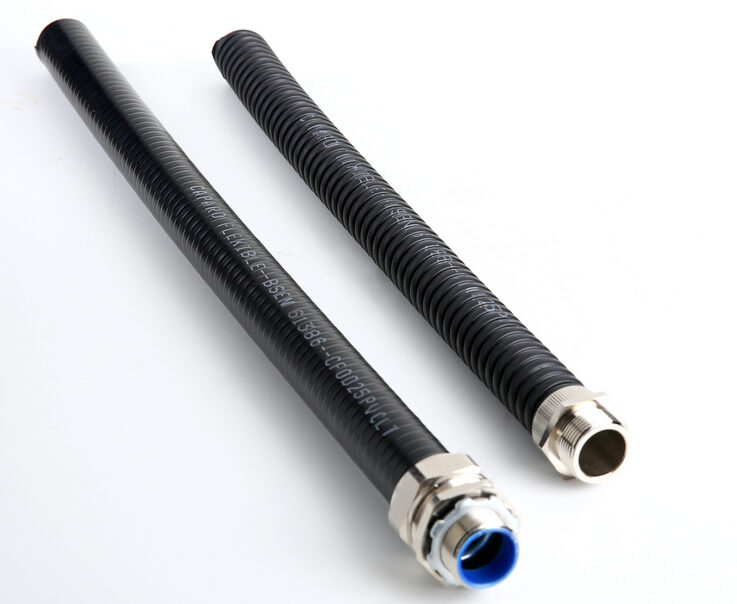

Flexible Conduit Systems

Flexible conduits are available in 20mm, 25mm, 32mm, 1½” (40mm) and 2” (50mm) sizes that complies to BS EN 61386 standards and the popular range includes:

• Bare Flexible Metallic Conduit Tube
• Flame retardant PVC Covered Flexible Metallic Conduit Tube
• PVC Covered Liquid Tight Flexible Metallic Conduit Tube
• Low Smoke Zero Halogen (LSZH) Flexible Metallic Conduit Tube
• Low Smoke Zero Halogen Liquid Tight (LSLTZH) Flexible Metallic Conduit Tube

Data sheet

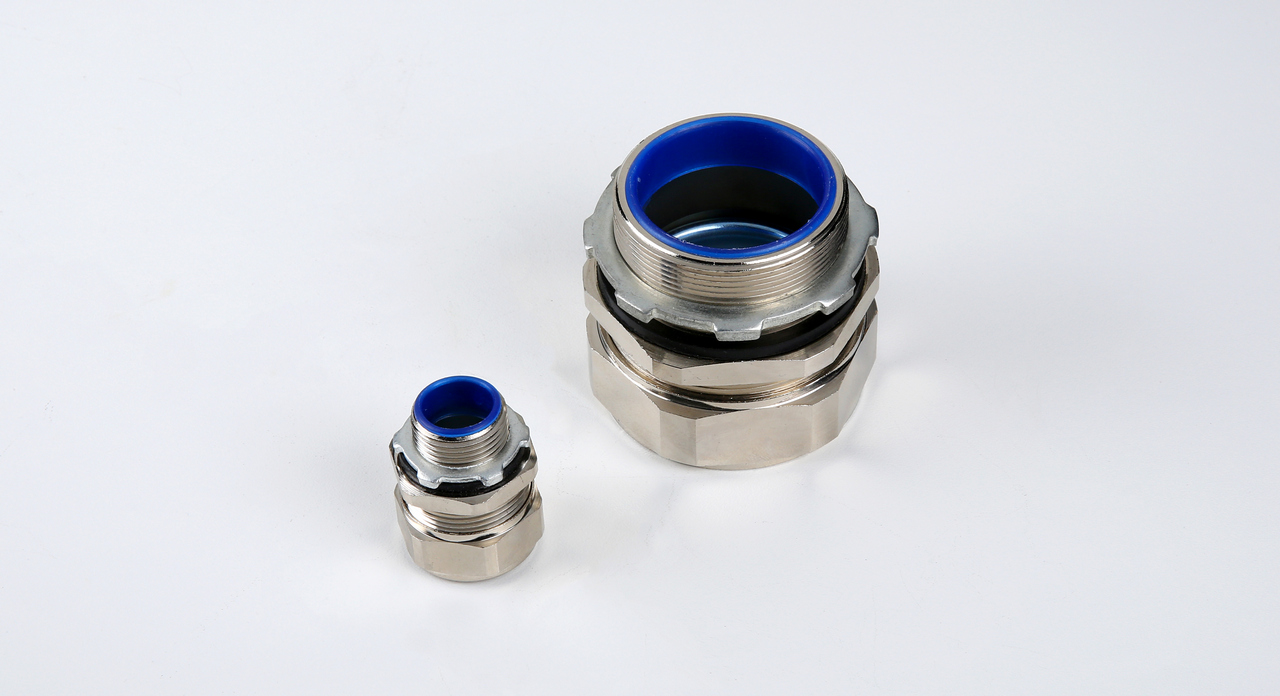

Flexible Conduit Fittings

• Nickle Plated Brass Adapters ( Male & Female)
• Nickle Plated Zinc Adapters
• Nickle Plated Brass Liquid Tight Adapters

Caparo Flexible Metallic Conduit Systems have a high IP rating and give excellent protection against dust and water ingress.
Low smoke/fire hazard variations are specifically designed for use in hazardous areas, transportation networks (underground and over ground), aviation, nuclear and defense applications.
Data sheet

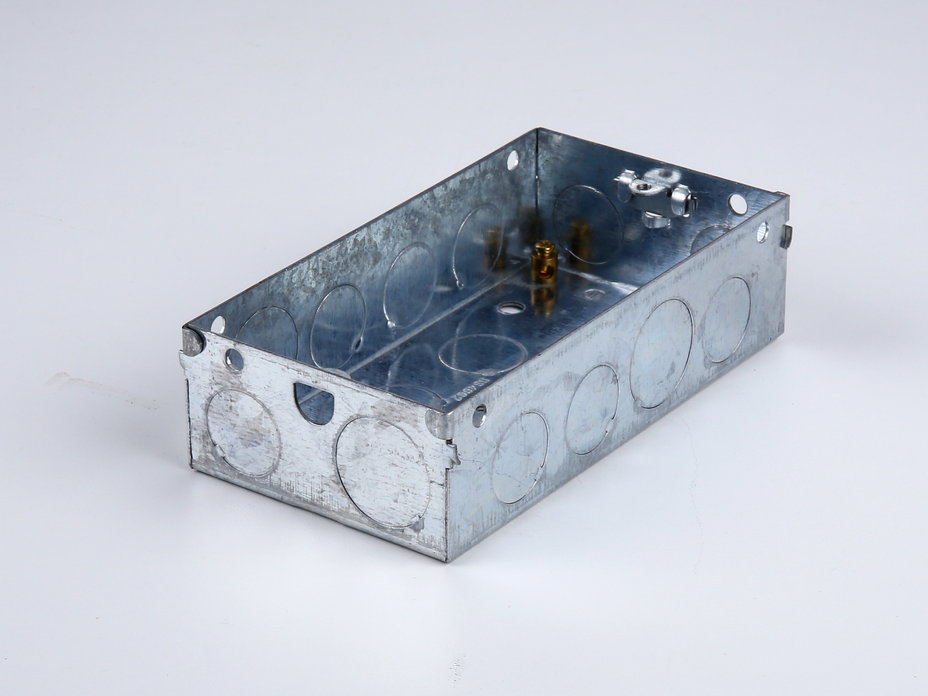

Switch and Socket Boxes

Data sheet

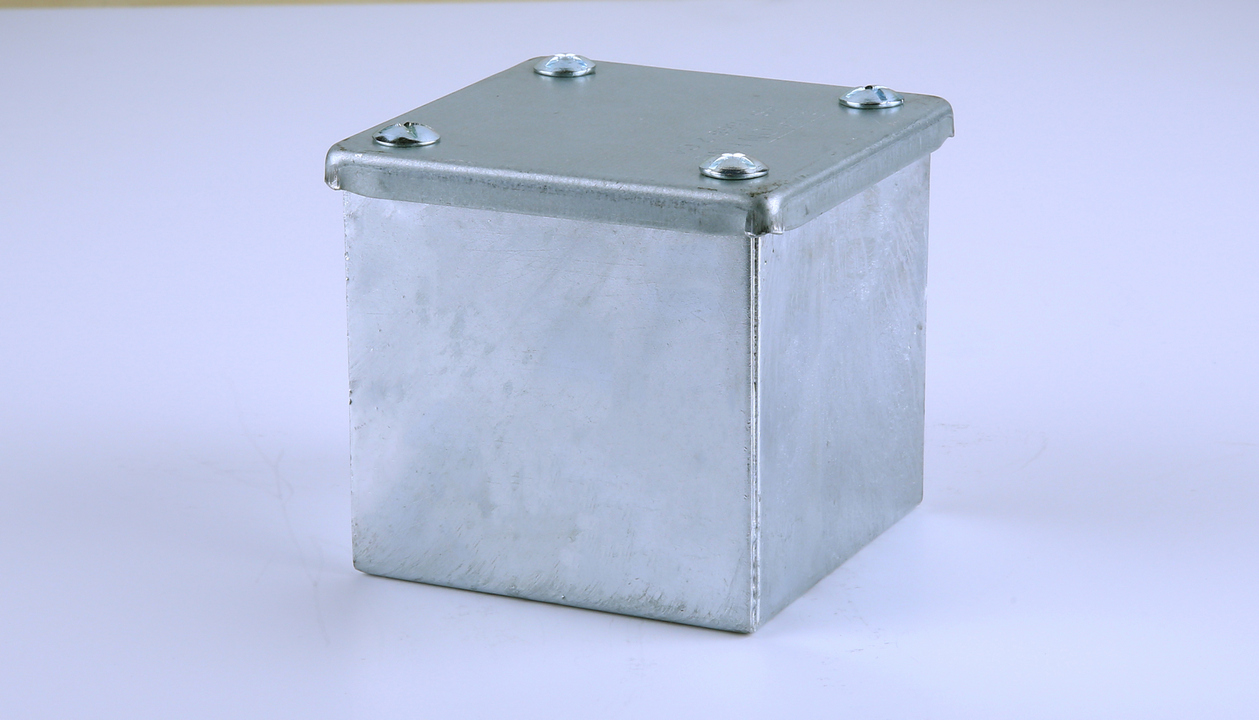

Adaptable Boxes

Data sheet

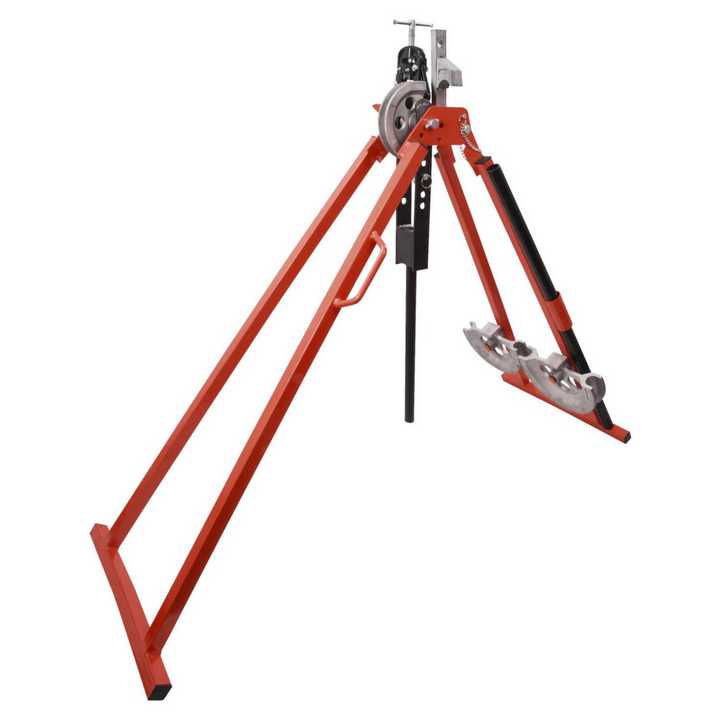

Bending Machine

High quality fabricated 30mm square steel tube frame
Lightweight, strong, portable and versatile design to provide maximum stability.
Precision cast aluminum formers for superior durability and bends to BS 4568.
Complete set comprising Stocks, Dies, Guides and Draw-in Tapes from sizes 20mm to 32mm available.
Data sheet

UL Standard

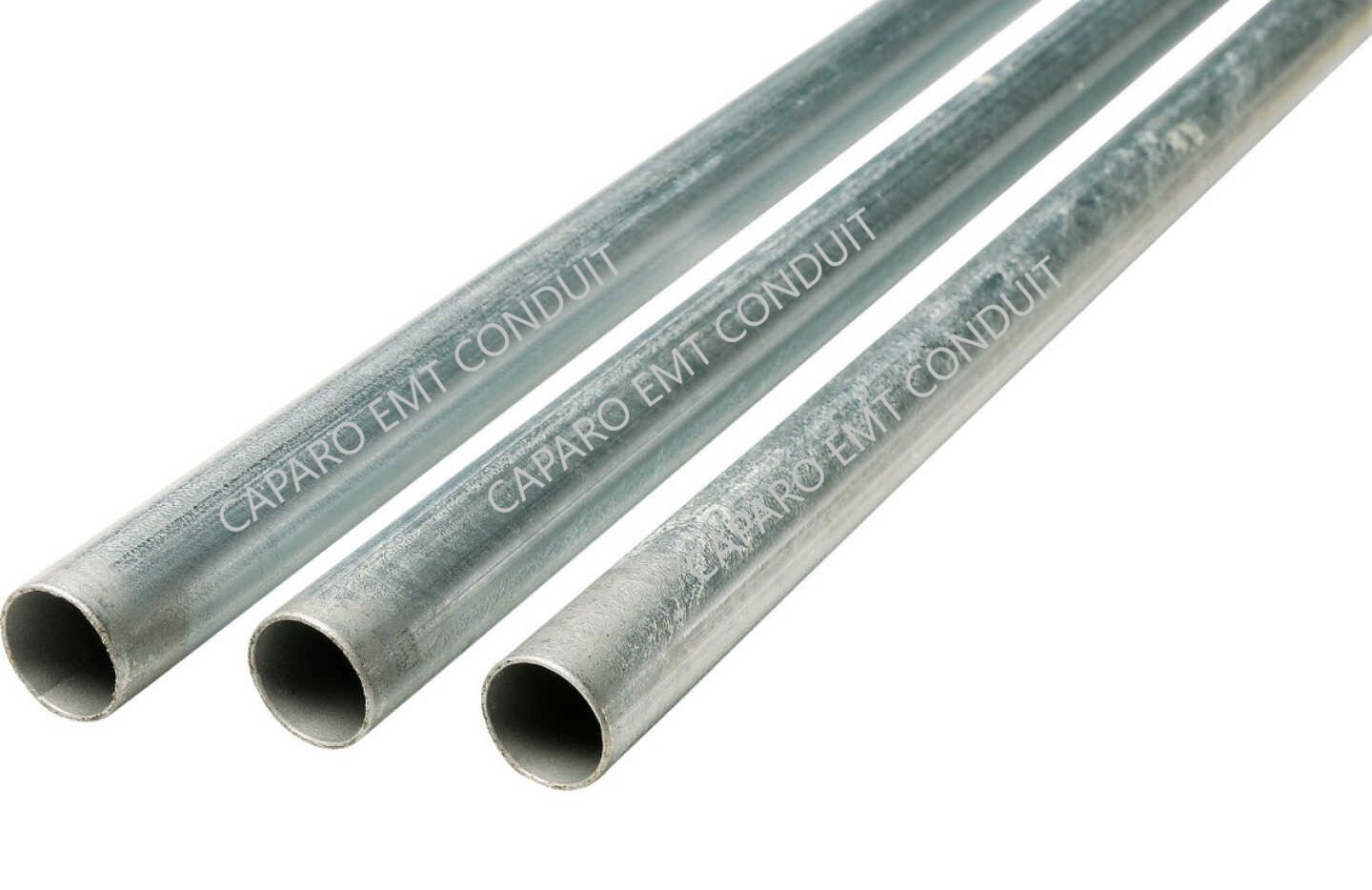

Electrical Metal Tubing (EMT)

High capacity, lightweight steel conduit tube for optimal protection
Thin-walled unthreaded ductile steel conduit tube.
Manufactured from Pre-Galvanised flat rolled high grade steel.
Supplied in 10’ (3.05m) lengths without couplers.
Complies with underwriters Laboratory UL797.
Excellent resistance to extreme temperatures and environments.
Data sheet

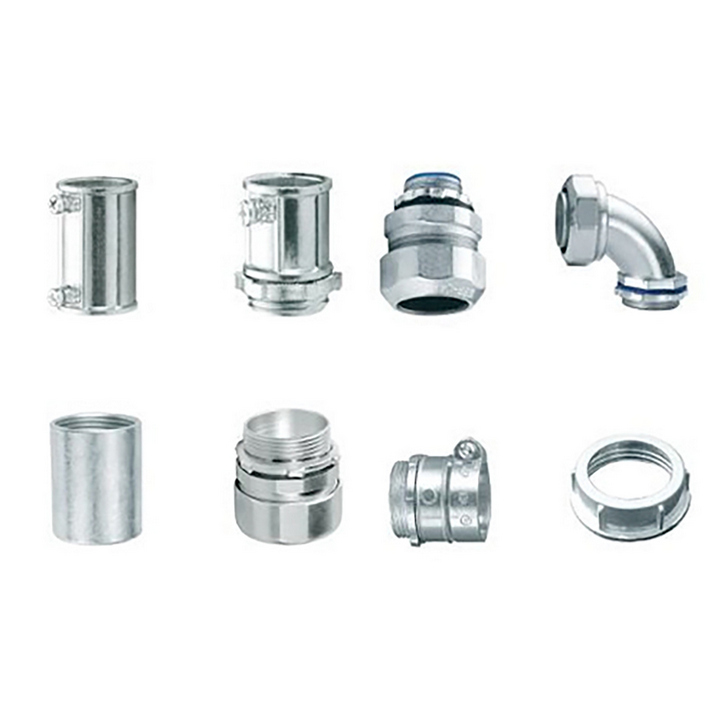

EMT Fittings and Accessories

CAPARO provides wide range of products which include Lightweight EMT Fittings And Connectors, Steel Electrical Conduit Parts, Electrical Metal Conduit Pipe Fittings, EMT Coupling Zinc Die Casting etc
CAPARO connectors and couplings provide a secure connection to any EMT application.
Pre-Galvanised zinc (alternative finishes upon request). UL listed steel and zinc fittings ensure high quality performance and longevity.
CAPARO EMT product include straps, clamp backs, bushings etc. to provide convenient solutions for any EMT installation.
Manufactured in accordance with UL 797
Data sheet

Conduit Bodies

Provides access to conductors for pulling, splicing and maintenance.
Copper free aluminum die cast
Standard Finish Powder coat
Data sheet

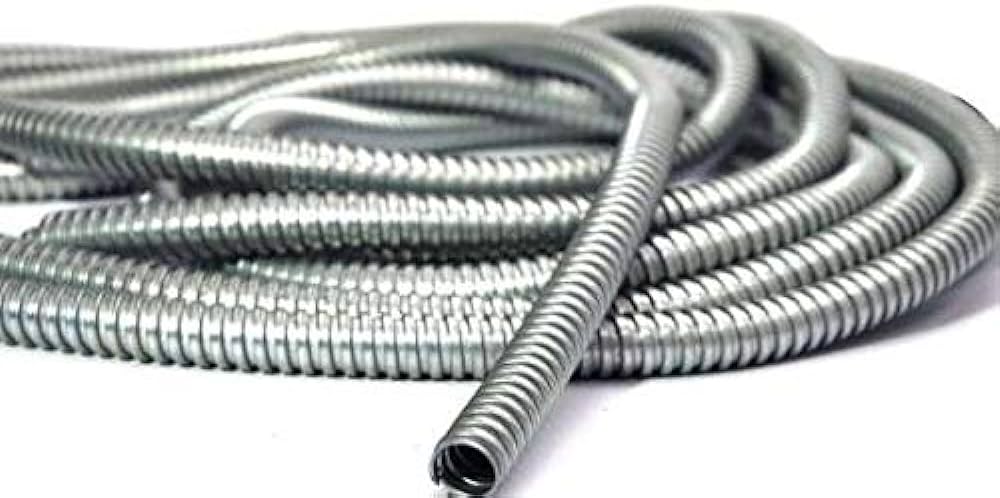

EMT Flexible Conduit & Fittings

Corrosion and crush resistant.
Smooth interior for easy wire pull-through.
Easy installation to follow contours.
Data sheet

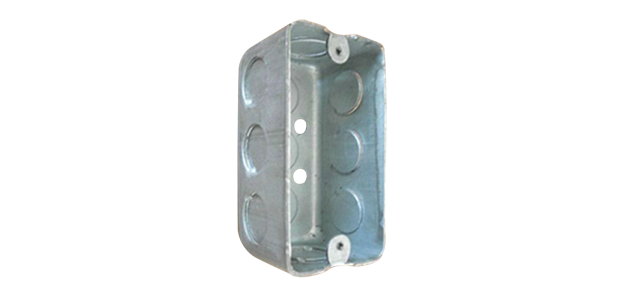

Utility Boxes

Used for convenience outlets, switch boxes or small junction boxes.
Finishing: Pre-Galvanized
Data sheet
